Packaged Chilled Water Air Handling Unit

Home  >  Products  >  Packaged RTUs  >  Air Handling Units  >  Chilled Water AHU  >  Packaged Chilled Water Air Handling Unit

Products

Hot Product

Packaged Chilled Water Air Handling Unit
Packaged Chilled Water Air Handling Unit
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Features

Chilled Water Type Modular Air Handling Unit



Product Overview

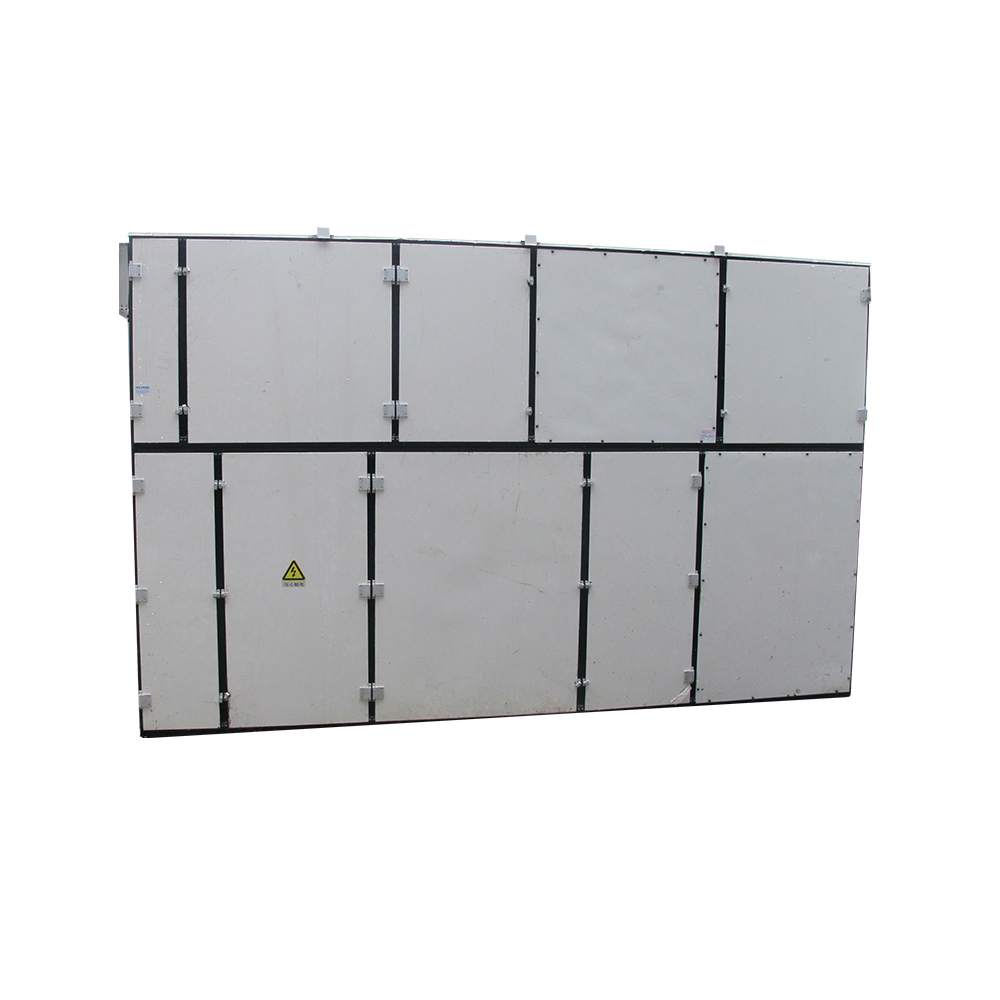

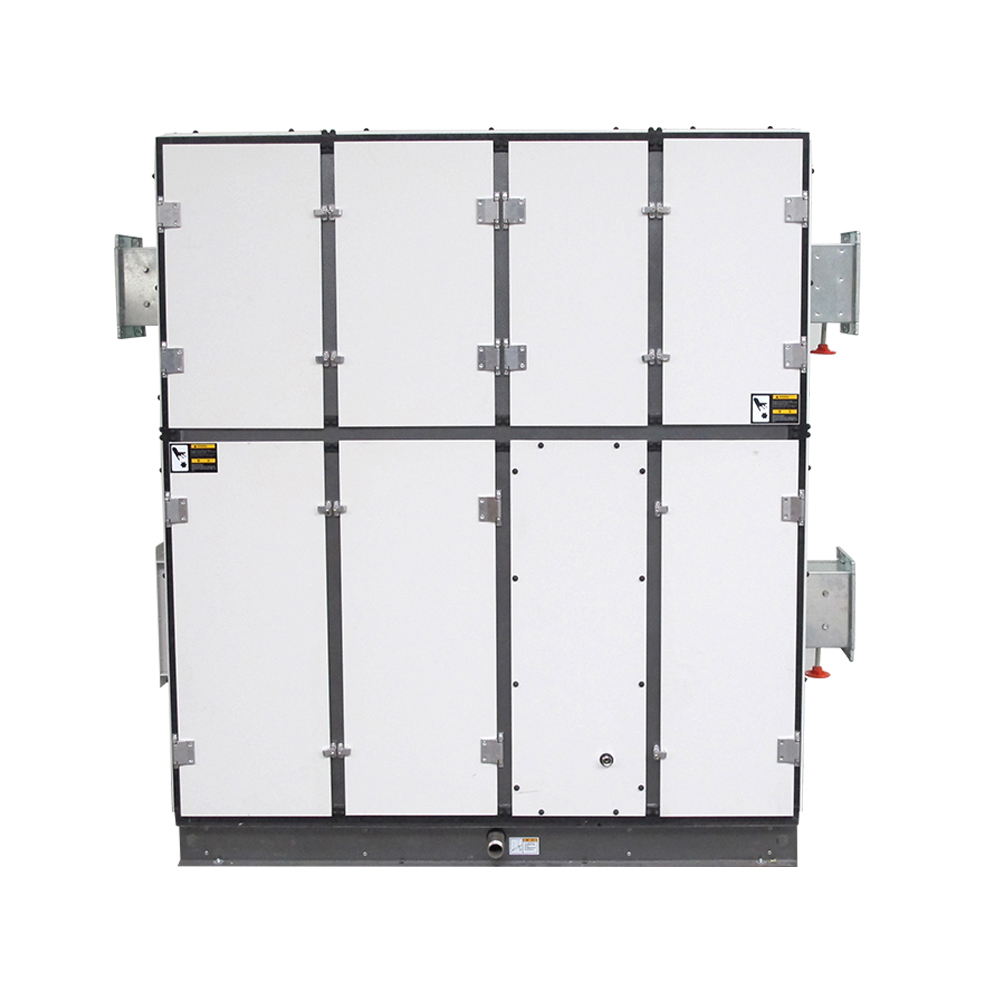

Venttk GT-ZKW series is a chilled water type modular air handling unit consisting of various functional sections, such as mixing, cooling coil, heating coil, filtration, and supply air fan. It enables flexible configuration for a wide range of air treatment applications, including medical, pharmaceutical, electronics, precision machinery, light, and chemical industries, as well as large and medium-sized public buildings.



Key Advantages

Ÿ International Standards Compliance

Designed and manufactured in accordance with ISO 9001, ISO 14001, and relevant AHRI/EN standards, ensuring reliable performance, quality consistency, and environmental responsibility.

Ÿ Modular Design & Flexible Integration

The modular construction allows each section to operate independently or as part of an integrated system, enabling easy installation, transportation, expansion, and maintenance. Ideal for projects with limited space or phased installation requirements.

Ÿ High Energy Efficiency & Air Tightness

Advanced thermal break (no cold bridge) design combined with double-skin insulated panels ensures excellent insulation performance and air tightness, with total air leakage rate ≤ 2.5%, significantly reducing energy loss.

Ÿ High-Performance Airflow System

Equipped with high-efficiency centrifugal fans and optimized airflow design, delivering stable air volume, low noise, low vibration, and precise operational control.

Ÿ Optimized for Indoor Air Quality & Easy Maintenance

High-efficiency heat exchanger coils and a maintenance-friendly internal layout ensure reliable cooling performance, simplified servicing, and improved indoor air quality for modern building environments.



Detailed Features

Ÿ Filtration System

Medium-efficiency filtration can be equipped with panel or bag-type filters. High-efficiency filters are also available upon request for purification applications. Filter status is monitored by sensing the pressure differential across the filter.

Ÿ Fan System

The unit features low-noise, double-inlet centrifugal fans, providing external static pressure from 100 to 1200 Pa without the need for an additional booster fan. Vibration isolators and flexible connections are installed to minimize vibration and noise.

Ÿ Control System

Modular control enables precise regulation according to user requirements. Fully automatic control is also available upon request.



Applications:

Industrial Applications

Manufacturing plants
Electronics and semiconductor facilities
Pharmaceutical and cleanroom facilities
Chemical plants
Food and beverage processing
Energy and power facilities
Data centers
Workshops and industrial buildings

Commercial & Public Buildings

Office buildings
Hotels and hospitality
Shopping malls and supermarkets
Hospitals and healthcare facilities
Educational buildings
Theaters and exhibition halls
Public buildings
Sports and leisure facilities

Technical
Chilled Water Air Handling Unit Spec. No. 1
Model GT-ZKW- 20 40 60 80 100 150 200 250 300
Air volume (m³/h) 2000 4000 6000 8000 10000 15000 20000 25000 30000
Outlet air pressure (pa) 300 300 400 500 500 600 750 750 750
Supply fan capacity (kw) 1.1 1.5 2.2 4 5.5 11 15 15 18.5

4 Rows

Cooling

 Return air (kw) 12.2 23.9 35.9 48 60 90 120 150 179
Water flow (m³/h)  2.2 4.2 6.1 8.2 10.5 15.3 20.4 23.8 28.2
All fresh air (kw) 22 43.8 62 90 112 156 210 265 310
Water flow (m³/h)  3.8 7.7 11 15.5 19.2 27.3 36.5 45.8 55
Pipe diameter (DN) 25 32 40 40 40 50 65 65 80

6 Rows

Cooling

 Return air (kw) 17 30.1 45.2 60 75 113 151 188 210
Water flow (m³/h)  2.8 5.3 7.7 10.5 13.6 19.2 25.5 30.2 36
All fresh air (kw) 30.5 58 88 118 150 200 288 355 420
Water flow (m³/h)  5.1 10 15.2 20.2 26.2 35.5 49 70 72.5
Pipe diameter (DN) 32 32 40 40 50 65 65 80 80

8 Rows

Cooling

 Return air (kw) 18.3 35.2 53 70 90 132 176 220 264
Water flow (m³/h)  3.2 6.2 8.9 12.2 16.2 22.2 30.2 37.2 44.2
All fresh air (kw) 34.8 70 101 138 178 245 332 410 500
Water flow (m³/h)  5.8 12 17.5 23.5 30.8 42.5 57.1 71 85
Pipe diameter (DN) 32 32 40 40 50 65 65 80 80

2 Rows

Heating

 Return air (kw) 20 42 60 84 108 150 200 250 300
Water flow (m³/h)  0.8 1.9 2.6 3.7 4.6 6.5 8.7 11 13
All fresh air (kw) 18 38 54 70 100 125 180 210 280
Water flow (m³/h)  0.8 1.7 2.4 3.2 4.5 5.5 7.8 10 12
Pipe diameter (DN) 25 32 40 40 40 40 50 50 65

4 Rows

Heating

 Return air (kw) 28 56 80 110 140 200 250 320 380
Water flow (m³/h)  1.2 2.4 3.5 4.8 6.3 9 11 13.5 18.2
All fresh air (kw) 32 62 90 125 150 220 300 380 450
Water flow (m³/h)  1.5 2.7 3.8 5.4 6.8 9.5 13.5 16.2 19.5
Pipe diameter (DN) 32 32 40 40 40 50 50 65 65
Function section outside dimension
Mixing section Length 500 500 500 550 600 800 800 800 800
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Pre-filter section Length 100 100 100 100 100 100 100 100 100
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Medium efficiency filter section Length 500 500 500 500 500 500 500 500 500
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Cooling coil section Length 600 600 700 700 700 800 800 1000 1000
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Heating section Length 300 300 300 400 400 400 400 400 400
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Humidifying section Length 400 400 400 400 400 400 400 400 400
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Fan section Length 500 500 900 400 1100 1400 1600 1700 1850
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Current balance section Length 400 400 500 900 500 600 600 600 700
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Sound deadening section Length 800 800 800 500 800 1000 1000 1000 100
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200
Air outlet section Length 400 400 400 800 500 600 600 800 800
Width 950 950 1080 1250 1600 1600 2000 2200 2200
Height 980 980 1080 1250 1320 1470 1680 1880 2200



Chilled Water Air Handling Unit Spec. No. 2
Model GT-ZKW- 350 400 450 500 550 600 700 800 1000
Air volume (m³/h) 35000 40000 45000 50000 55000 60000 70000 80000 100000
Outlet air pressure (pa) 600 600 600 600 800 800 800 800 900
Supply fan capacity (kw) 18.5 22 220 30 30 37 37 45 55

4 Rows

Cooling

 Return air (kw) 180 212 240 270 300 320 380 440 540
Water flow (m³/h)  32.2 38.2 42.5 48.2 53.6 54.8 66 76.3 92.8
All fresh air (kw) 360 410 456 510 570 600 720 840 1020
Water flow (m³/h)  62.5 72.2 78.4 87.6 98 103.1 123.7 144.3 175.3
Pipe diameter (DN) 40*2 40*2 40*2 50*2 50*2 50*2 65*2 65*2 65*2

6 Rows

Cooling

 Return air (kw) 240 280 310 350 380 400 490 560 680
Water flow (m³/h)  42.5 48.1 52.3 60 66 68.8 84.2 96.6 116.8
All fresh air (kw) 456 532 590 665 720 760 930 1060 1290
Water flow (m³/h)  78.4 91.4 101 114.3 123.7 130 160 182 221.6
Pipe diameter (DN) 40*2 50*2 50*2 65*2 65*2 65*2 65*2 80*2 100*2

8 Rows

Cooling

 Return air (kw) 290 330 380 420 470 480 590 680 820
Water flow (m³/h)  49.8 56.7 65.3 72.7 80.8 82.5 101.4 116.8 141
All fresh air (kw) 550 630 720 800 890 910 1120 1290 1560
Water flow (m³/h)  94.5 108.3 123.7 137.5 153 156.4 192.5 221.7 268
Pipe diameter (DN) 50*2 65*2 65*2 65*2 65*2 65*2 80*2 100*2 100*2

2 Rows

Heating

 Return air (kw) 350 400 440 490 540 560 680 780 950
Water flow (m³/h)  15 17.2 18.8 21.5 24 25 30 34.2 42
All fresh air (kw) 320 360 396 440 486 500 612 700 850
Water flow (m³/h)  13.6 15.8 17.4 19.3 21.3 30 26.7 30.7 37.3
Pipe diameter (DN) 65 65 655 80 80 80 80 100 100

4 Rows

Heating

 Return air (kw) 450 520 90 660 730 760 920 1060 1280
Water flow (m³/h)  19.5 22.5 25.8 29 32.2 32.5 40.2 45.8 56
All fresh air (kw) 405 470 530 594 660 680 830 950 1150
Water flow (m³/h)  18.2 20.5 22.8 26.9 29 29.6 34.8 41.5 47.6
Pipe diameter (DN) 80 80 80 80 100 100 100 125 125
Function section outside dimension (mm)
Mixing section Length 1000 1000 1000 1200 1200 1200 1200 1200 1200
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Pre-filter section Length 100 100 100 100 100 100 100 100 100
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Medium efficiency filter section Length 500 500 500 500 500 500 500 500 500
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Cooling coil section Length 1200 1200 1200 1200 1200 1200 1200 1200 1200
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Heating section Length 500 500 500 500 600 600 600 600 600
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Humidifying section Length 400 400 400 400 400 400 400 400 400
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Fan section Length 2000 2000 2000 2000 2200 2200 2300 2700 2700
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Current balance section Length 800 800 800 800 800 800 800 1000 1000
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Sound deadening section Length 1200 1200 1200 1200 1200 1400 1400 1400 1400
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
Air outlet section Length 1000 1000 1000 1200 1200 1500 1500 1500 1500
Width 2300 2300 2300 2500 2700 2700 2800 3200 3500
Height 2580 2870 2870 2870 3200 3200 3200 3200 3200
