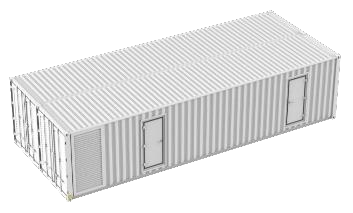

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment.

It supports deep customization for clients and is suitable for various specific application scenarios.

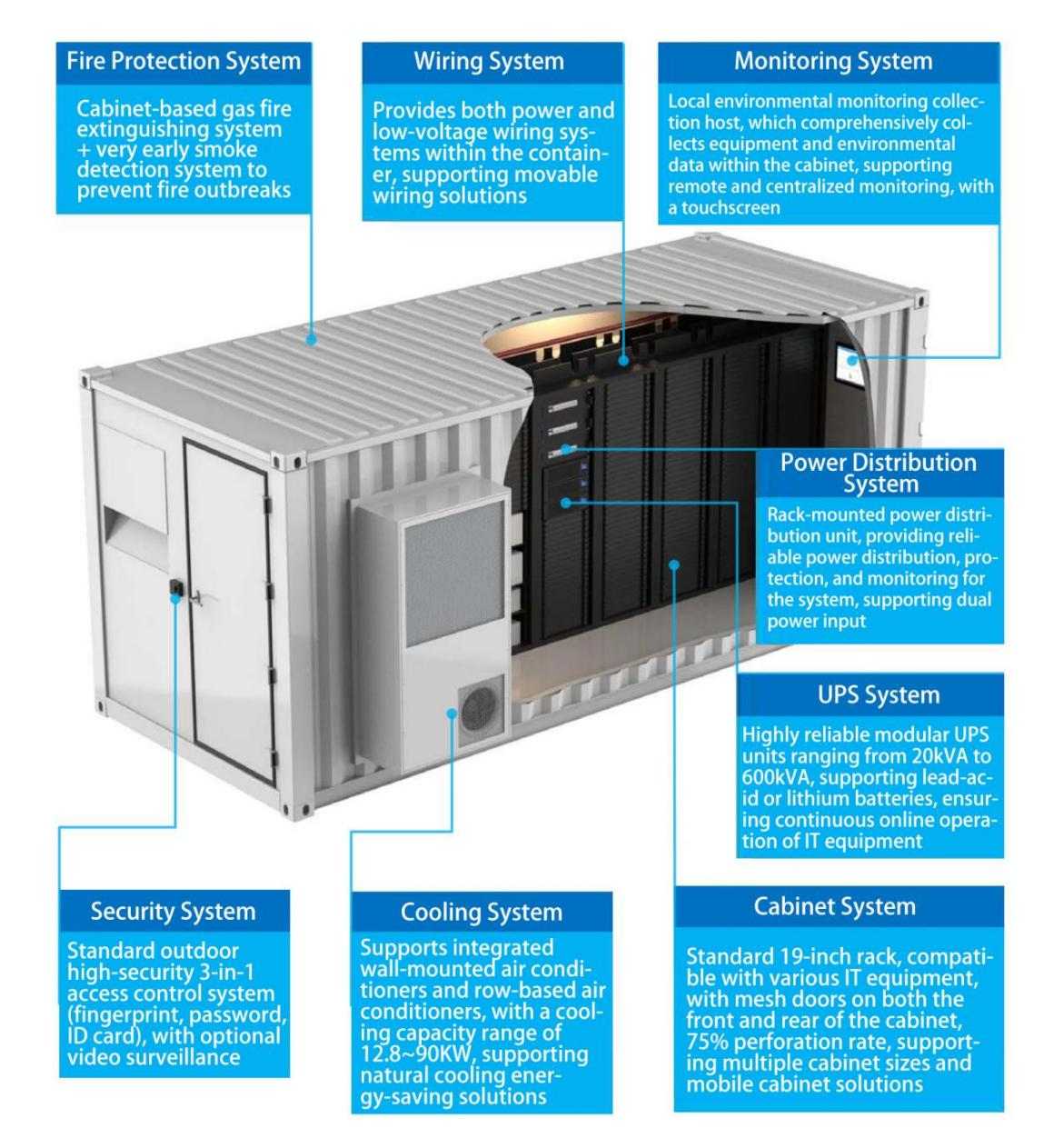

Features

· Tailored Customization: With highly professional research, development, and manufacturing capabilities, we provide customized container data centers for clients. This includes system availability, protection capabilities, container size, power supply standards, cooling types, and other special requirements.

· Rapid Deployment: The container is pre-integrated with all necessary infrastructure for IT equipment operation, such as UPS power distribution, cooling, racks, etc. All components are tested and configured in the factory, allowing for simple installation on-site, with delivery as fast as 40 days.

· Safe and Reliable: The standard container meets the IP55 protection level, with customization options available to reach IP65, as well as corrosion resistance, fire resistance, explosion-proof, and bulletproof capabilities. It comes equipped with fire protection, access control, and video surveillance systems to prevent fire, theft, and unauthorized access.

· Continuous Operation: The excellent overall protection capabilities, combined with high availability power distribution and cooling system designs, ensure continuous online operation of client business.

Multiple Protective Cabinet Design

· Waterproof and Moisture-Proof

· Salt Spray Protection

· Mold Prevention

· Fire and Heat Insulation

· Seismic Resistance

· Theft and Explosion Protection

（1）Container Construction

· Build from scratch with ISO container standard

· Salt spray standard: 750h

· Thermal protected with rock wool

· withstand 30 m/s wind speed under working condition

· Fire protected options up-to 120min

· Bullet proof options for high security sites

· C5M High Corrosion Protection options for coastal sites

· IP55 water/dust protection

· Operating temperature: -40℃~55℃

（2）Precision Cooling System

· 5.5-31.5kW wall mount cooling as standard design

· 5.6-90kW Inrow cooling options

· 5.5-122.9kW Room cooling options

· Work up-to 55C ambient temperature

· All types of free cooling options

（3）IT Rack System

· 1800kg static loading capacity IT racks

· widths(600/800mm) ,depths(1100/1200mm) options

· Optional with cold/hot aisle containment systems

· Sliding in front/rear direction for easier service

· Optional with access control for better management

（4）UPS Power System

· 3-60kVA rack UPS as standard design

  60-200kVA modular UPS rack mount

  250-600kVA modular UPS floor mount

  60A-1200A 48VDC rectifier

· VRLA / Lithium battery by configuration

· Basic/Smart PDU per configurations

· Built in power distribution panels configurable to T1~T4 uptime level

（5）DCIM System

· Full communication to UPS, cooling, power panel, and all type of sensors

· Integration with access control system

· Integration with video surveillance system

· Local display and settings on touch screen, 10/21/42inch display options

· Remote accessible from web, SMS, Email, Modbus-TCP. Optional with SNMP

（6）Access Control System

· IP55 3 in 1 type (pin/password/fingerprint) access control protection

· Management by standalone software

· Integration with DCIM system

（7）Fire Protection System

· Early fire detection system

· Smart fire panel for easier fire detection and management

· Fire agent of Novec1230/FM200
