Steam Libr Absorption Chiller

Home  >  Products  >  Chillers  >  Steam Libr Absorption Chiller

Products

Hot Product

Steam Libr Absorption Chiller
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Information

Introduction
    Steam fire libr absorption chiller is a type of refrigeration equipment powered by steam heat. LiBrsolution is used as the circulating working fluid, in which the LiBr solution is used as the absorbent and water is the refrigerant, Unit is main composed of the H'TG, LTG, condenser,evaporator, absorber, high temperature HX, low temp.HX, condensate water HX, auto purge device, vacuum pump, canned pumpetc.

Feature
· Unit cooling capacity:100kW-11630kW
· Heat input: steam ( above 0.01Mpa)

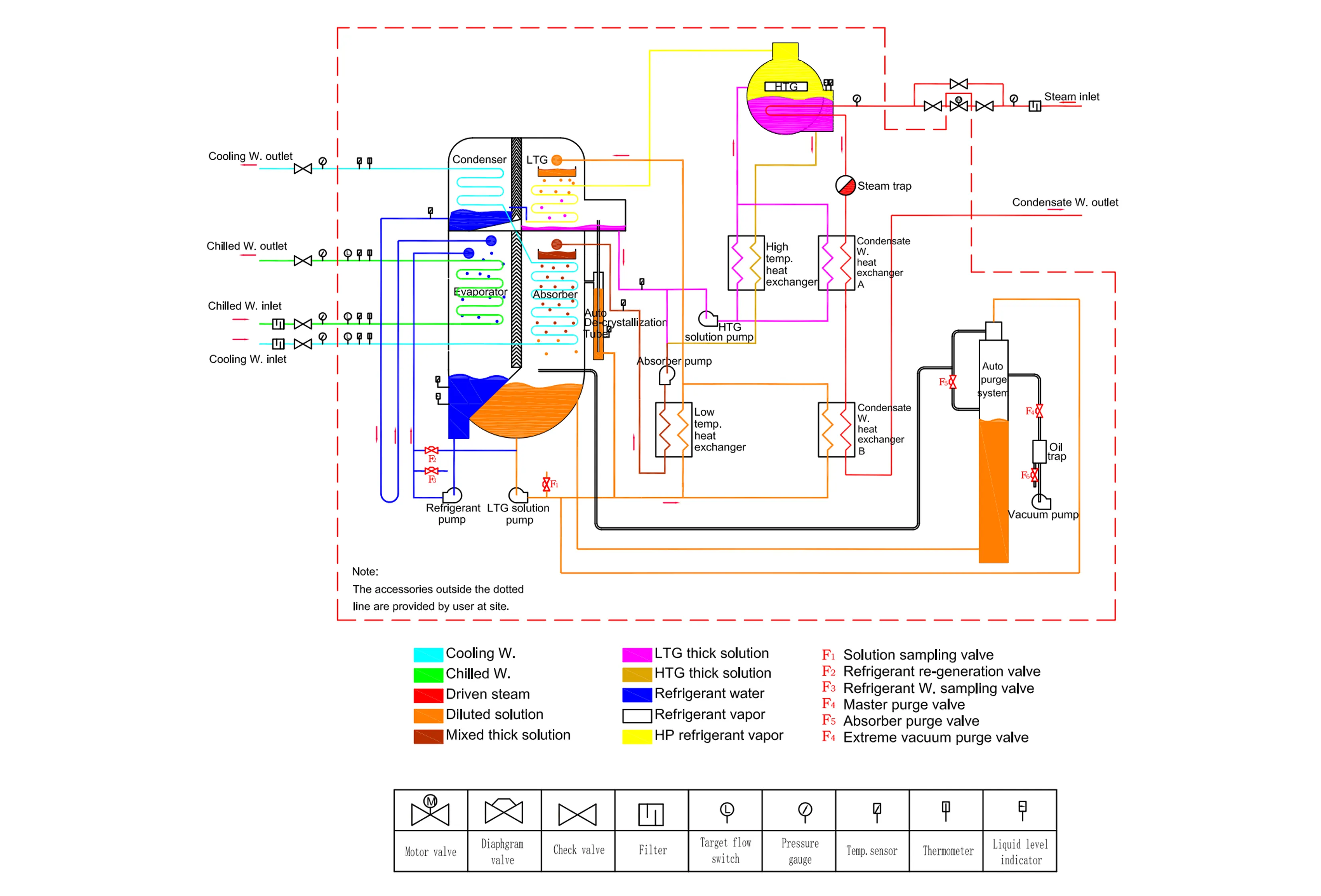

Principle Flow Chart

Technical Data
Nominal Parameter（Steam Pressure 0.4MPa）
Model SXZ-4 23 35 47 58 70 81 93 105 116 145 174 204 233 262 291 349 407 465 523 582
Cooling Capacity kW 233 350 470 580 700 810 930 1050 1163 1450 1740 2040 2330 2620 2910 3490 4070 4650 5230 5820
x10^4
kcal/h		 20 30 40 50 60 70 80 90 100 125 150 175 200 225 250 300 350 400 450 500
USRT 66 99 132 165 198 231 265 299 331 413 496 579 661 744 827 992 1157 1323 1488 1653
Chilled
water		 Inlet/outlet
temp		 °C 12→7
Flow rate m³/h 40 60 80 100 120 140 160 180 200 250 300 350 400 450 500 600 700 800 900 1000
Pressure drop kPa 33 33 33 36 36 52 52 52 52 29 29 29 29 29 48 48 48 48 44 68
Joint connection DN(mm) 100 125 125 125 150 150 150 150 200 200 200 250 250 250 250 300 300 350 350 400
Cooling
water		 Inlet/outlet
temp		 °C 32→38
Flow rate m³/h 59 88 117 145 174 202 232 261 289 361 433 506 578 650 722 866 1010 1154 1299 1444
Pressure drop kPa 82 82 82 62 62 62 91 91 91 58 58 58 58 58 51 51 51 63 63 76
Joint connection DN(mm) 125 125 150 150 150 200 200 200 250 250 250 300 300 350 350 350 400 400 400 500
Steam Steam consumption kg/h 256 385 517 638 770 891 1023 1155 1279 1595 1914 2244 2563 2882 3201 3839 4477 5115 5753 6402
Steam inlet mm 50 50 65 65 65 65 80 80 80 100 100 100 125 125 125 125 150 150 150 150
Condensate water outlet mm 25 25 25 25 25 25 25 40 40 40 40 40 40 40 40 50 50 50 50 65
Electric Total power kW 2.8 2.8 2.8 3.8 3.8 3.8 7 7 7.4 8 11.8 13.8 13.8 14.8 15.1 23.2 23.7 24.7 27.2 28.2
Power supply 3ph\380V\AC\50Hz
Dimension Length mm 3050 3200 3150 4140 4250 4290 4400 5400 5350 5450 6200 6350 6400 6400 6600 7300 7600 7600 8700 8400
Width mm 1910 1980 2000 2130 2030 2300 2330 2450 2560 2680 3150 3250 3310 3350 3350 3350 3650 3690 3850 4150
Height mm 2030 2180 2330 2660 2380 2500 2570 2600 2620 2700 3000 3180 3350 3600 3730 3530 3680 3700 3900 3920
Transportation Status In one piece
Transportation Weight
(including solution)		 t 4.4 5.5 6.7 7.8 8.9 9.8 10.7 11.7 14.1 16.6 19 21.3 23.5 25.9 29.9 34.1 38.4 45.8 52.4 59.8
Operation weight t 4.9 5.9 7.2 8.5 9.9 11.1 12 13.3 15.7 18.6 21 23.8 26.3 28.8 33.7 38.4 43 52.3 59.4 68.8

Nominal Parameter（Steam Pressure 0.6MPa）
Model SXZ-6 23 35 47 58 70 81 93 105 116 145 174 204 233 262 291 349 407 465 523 582 698
Cooling Capacity kW 233 350 470 580 700 810 930 1050 1163 1450 1740 2040 2330 2620 2910 3490 4070 4650 5230 5820 6980
x10^4
kcal/h		 20 30 40 50 60 70 80 90 100 125 150 175 200 225 250 300 350 400 450 500 600
USRT 66 99 132 165 198 231 265 299 331 413 496 579 661 744 827 992 1157 1323 1488 1653 1984
Chilled
water		 Inlet/outlet
temp		 °C 12→7
Flow rate m³/h 40 60 80 100 120 140 160 180 200 250 300 350 400 450 500 600 700 800 900 1000 1200
Pressure drop kPa 33 33 33 36 36 52 52 52 52 29 29 29 29 29 48 48 48 48 44 44 65
Joint connection DN(mm) 100 125 125 125 150 150 150 150 200 200 200 250 250 250 250 300 300 350 350 350 400
Cooling
water		 Inlet/outlet
temp		 °C 32→38
Flow rate m³/h 58 86 114 142 171 198 227 256 283 354 424 496 566 637 707 849 990 1131 1272 1414 1696
Pressure drop kPa 82 82 82 82 62 62 62 91 91 91 58 58 58 58 58 51 51 51 63 63 76
Joint connection DN(mm) 125 125 150 150 150 200 200 200 250 250 250 300 300 350 350 350 400 400 400 500 500
Steam Steam consumption kg/h 242 364 489 603 728 842 967 1092 1210 1508 1810 2122 2423 2725 3026 3630 4233 4836 5439 6053 7259
Steam inlet mm 40 50 50 65 65 65 65 80 80 80 100 100 100 125 125 125 125 150 150 150 150
Condensate water outlet mm 25 25 25 25 25 25 25 40 40 40 40 40 40 40 40 50 50 50 50 65 65
Electric Total power kW 2.8 2.8 2.8 2.8 3.8 3.8 6.2 7 7 7.4 11.4 11.8 13.8 13.8 14.8 15.1 23.2 23.7 24.7 27.2 28.2
Power supply 3ph\380V\AC\50Hz
Dimension Length mm 3050 3200 3150 4140 4250 4290 4400 5400 5350 5450 6200 6350 6400 6400 6600 7300 7600 7600 8700 8400 9400
Width mm 1710 1780 1800 1930 1830 2100 2126 2250 2360 2480 3000 3040 3110 3150 3150 3150 3400 3490 3650 3950 3880
Height mm 1950 2100 2250 2560 2280 2400 2450 2480 2500 2580 2850 3030 3200 3450 3550 3350 3500 3500 3700 3700 4000
Transportation Status In one piece
Transportation Weight
(including solution)		 t 3.2 4.4 5.5 6.7 7.8 8.9 9.8 10.7 11.7 14.1 16.6 19 21.3 23.5 25.9 29.9 34.1 38.4 45.8 52.4 59.8
Operation weight t 3.6 4.9 5.9 7.2 8.5 9.9 11.1 12 13.3 15.7 18.6 21 23.8 26.3 28.8 33.7 38.4 43 52.3 59.4 68.8

Nominal Parameter（Steam Pressure 0.8MPa）
Model SXZ-8 23 35 47 58 70 81 93 105 116 145 174 204 233 262 291 349 407 465 523 582 698
Cooling Capacity kW 233 350 470 580 700 810 930 1050 1163 1450 1740 2040 2330 2620 2910 3490 4070 4650 5230 5820 6980
x10^4
kcal/h		 20 30 40 50 60 70 80 90 100 125 150 175 200 225 250 300 350 400 450 500 600
USRT 66 99 132 165 198 231 265 299 331 413 496 579 661 744 827 992 1157 1323 1488 1653 1984
Chilled
water		 Inlet/outlet
temp		 °C 12→7
Flow rate m³/h 40 60 80 100 120 140 160 180 200 250 300 350 400 450 500 600 700 800 900 1000 1200
Pressure drop kPa 33 33 33 36 36 52 52 52 52 29 29 29 29 29 48 48 48 48 44 44 65
Joint connection DN(mm) 100 125 125 125 150 150 150 150 200 200 200 250 250 250 250 300 300 350 350 350 400
Cooling
water		 Inlet/outlet
temp		 °C 32→38
Flow rate m³/h 58 86 114 142 171 198 227 256 283 354 424 496 566 637 707 849 990 1131 1272 1414 1696
Pressure drop kPa 82 82 82 82 62 62 62 91 91 91 58 58 58 58 58 51 51 51 63 63 76
Joint connection DN(mm) 125 125 150 150 150 200 200 200 250 250 250 300 300 350 350 350 400 400 400 500 500
Steam Steam consumption kg/h 235 354 475 586 707 818 939 1061 1175 1465 1757 2060 2353 2646 2939 3525 4111 4697 5282 5878 7050
Steam inlet mm 40 50 50 65 65 65 65 80 80 80 100 100 100 125 125 125 125 150 150 150 150
Condensate water outlet mm 25 25 25 25 25 25 25 40 40 40 40 40 40 40 40 50 50 50 50 65 65
Electric Total power kW 2.8 2.8 2.8 2.8 3.8 3.8 6.2 7 7 7.4 11.4 11.8 13.8 13.8 14.8 15.1 23.2 23.7 24.7 27.2 28.2
Power supply 3ph\380V\AC\50Hz
Dimension Length mm 3050 3200 3150 4140 4250 4290 4400 5400 5350 5450 6200 6350 6400 6400 6600 7300 7600 7600 8700 8400 9400
Width mm 1710 1780 1800 1930 1830 2100 2126 2250 2360 2480 3000 3040 3110 3150 3150 3150 3400 3490 3650 3950 3880
Height mm 1950 2100 2250 2560 2280 2400 2450 2480 2500 2580 2850 3030 3200 3450 3550 3350 3500 3500 3700 3700 4000
Transportation Status In one piece
Transportation Weight
(including solution)		 t 3.1 4.4 5.5 6.6 7.7 8.7 9.7 10.5 11.5 13.9 16.4 18.8 21.1 23.2 25.6 29.6 33.7 38.1 45.6 52.2 59.5
Operation weight t 3.5 4.8 5.9 7.1 8.3 9.7 10.7 11.8 13 15.4 18.3 20.7 23.5 26 28.6 33.3 38 42.7 51.9 59 68.4
