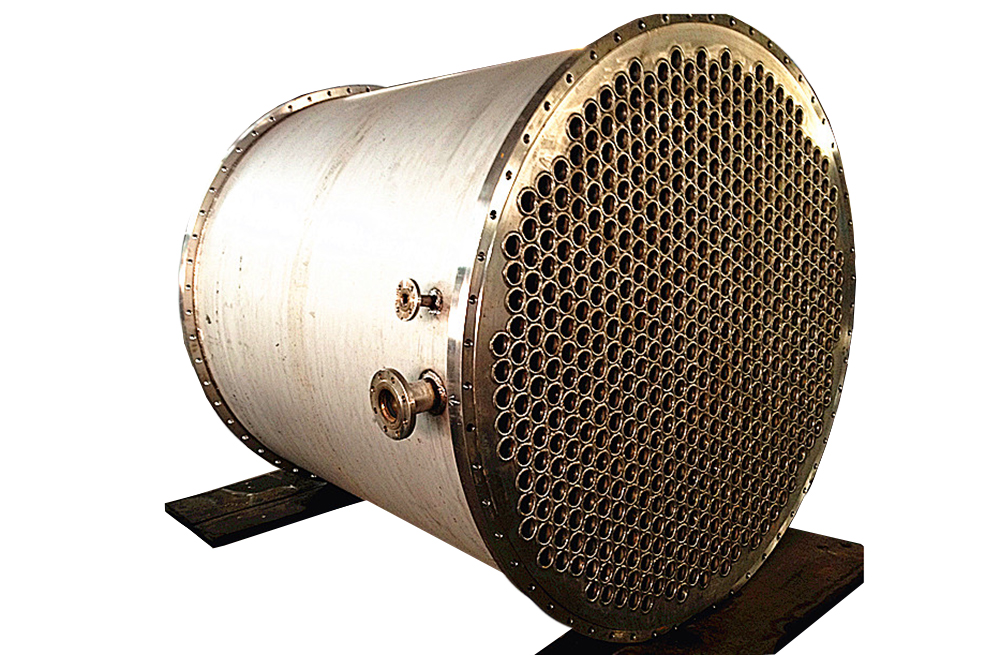

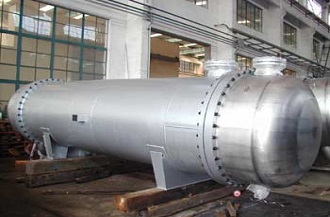

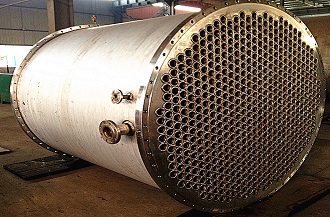

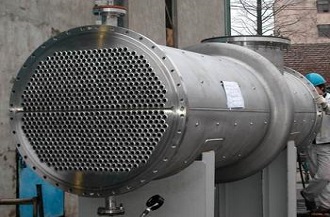

Huge Stainless Steel Heat Exchanger

Home > Products > Shell and Tube Heat Exchanger > Huge Stainless Steel Heat Exchanger

Products

Hot Product

Dry Cooler Horizontal/ Vertical Double-Row

Dry Cooler Horizontal/ Vertical Double-Row

Huge Stainless Steel Heat Exchanger

Huge Stainless Steel Heat Exchanger

Huge Stainless Steel Heat Exchanger

Huge Stainless Steel Heat Exchanger

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Features

1) Usually used for cooling
2) SSS904 tubes and SS304 shell.
3) The tube was tested by 1.62MPa pressure to make sure the tube is strong and not leakage .
4) The shell was tested by 0.5Mpa water pressure to make sure the water system not leakage .
5) ASME certificated.

Technical

Work Condition:
1)Refrigerant side(In the tube): R22,R134a,R407c,R410a etc.
2)Water side (Between the tube and shell):Nature water, fresh water, sea water or other liquid.

Material:
1)Heat transfer Tube: stainless steel
2)Shell: stainless steel

Main specifications

Design pressure	100mpa max
Design temperature	1050℃ max
Diameter of shell	3000mm max
Heat exchange area/set	6000 square meter max
Diameter of heat exchanger tube	10-70mm
Length of heat exchanger tube	100-20000mm
Type of heat exchanger tube	1) arc-tube 2) spiral-tube
Baffling element	1) segment baffle plate 2) circle baffle plate 3) vortex baffle plate 4) rod-baffle
Main material	1) mild steel 2) low alloy steel 3) stainless steel 4) copper(for tube) 5) titanium (for tube)

Application

Application：

Shell and tube heat exchanger are widely used for cooling and heating in certain fields of special industries, such as acid tank plating, aluminum oxidation, petrochemical industry, light industry, metallurgy, electric power, shipbuilding and marine environment etc.
